CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD

Name: CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD
Price: 409.9 CHF
Availability: OnlineOnly

Station fitted with the Concentric System (without screws) for rapid installation. The modern design, double-foam seat and self-supporting tray guarantee comfort and practical use, wherever you fish.

ID 8948112

Sold and shipped by

No import fees or delays apply.
Checkout as a member and get more time to return products in case you change your mind.
Enjoy long-lasting quality. Our products come with a standard 2-year warranty.

How to get it

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 1/16

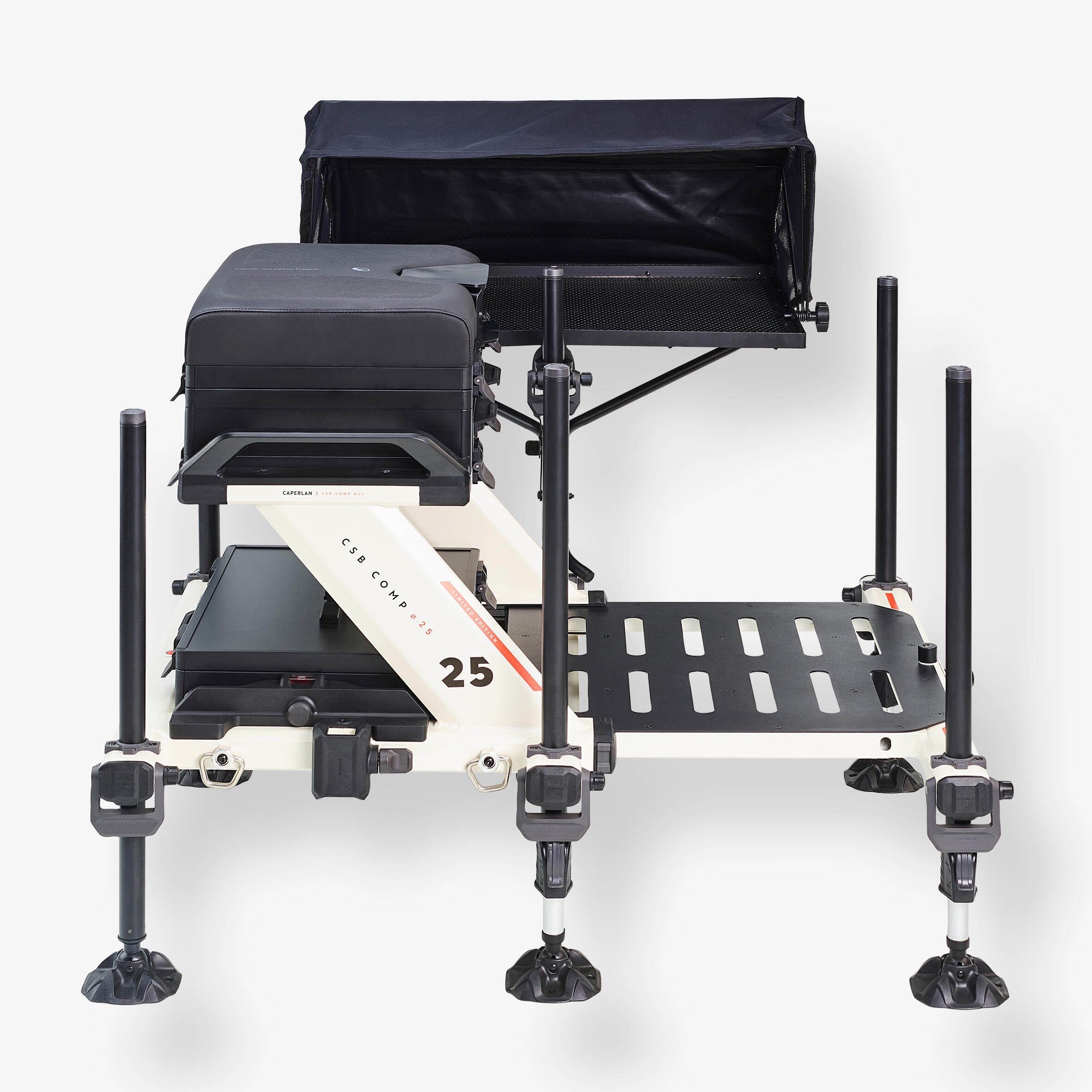

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 2/16

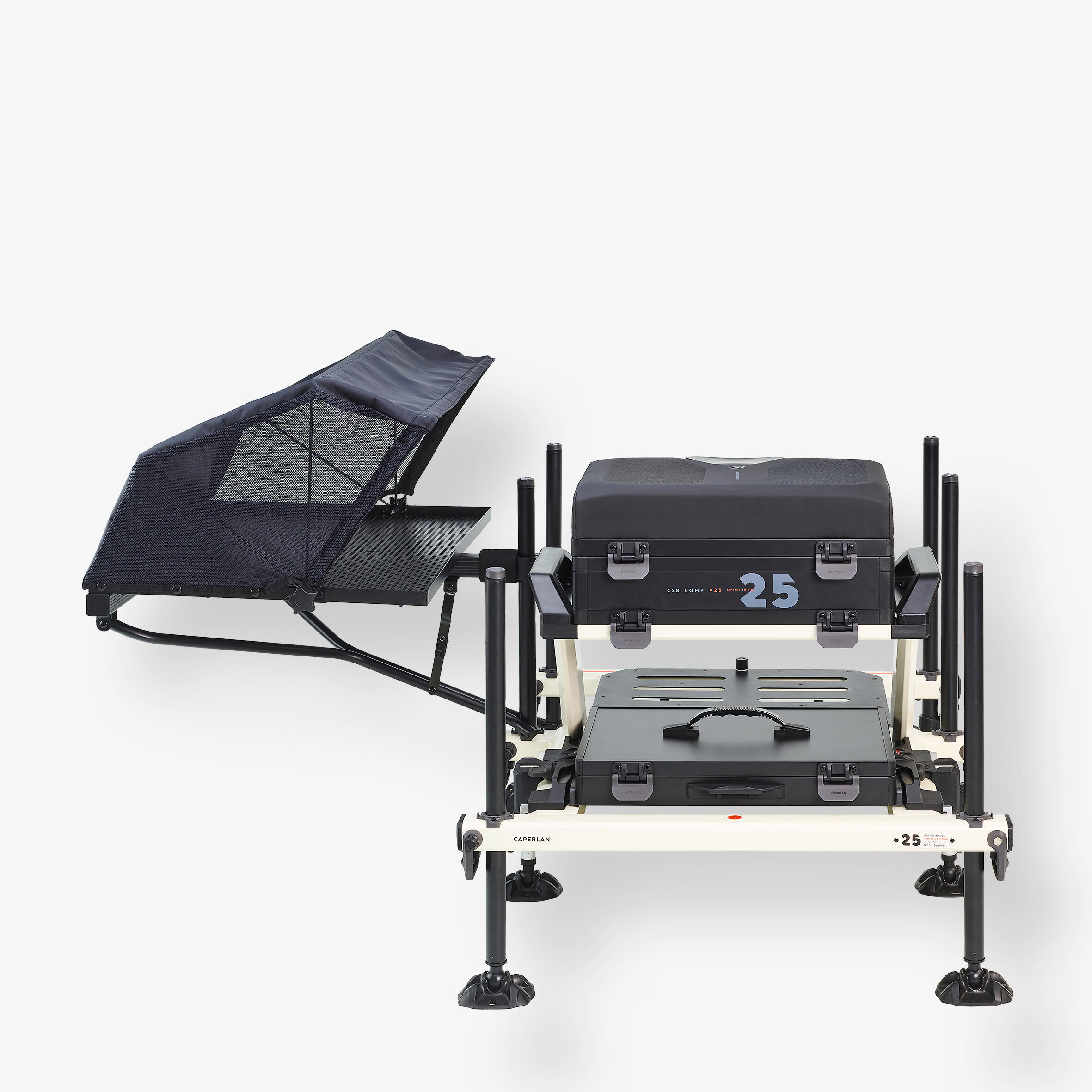

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 3/16

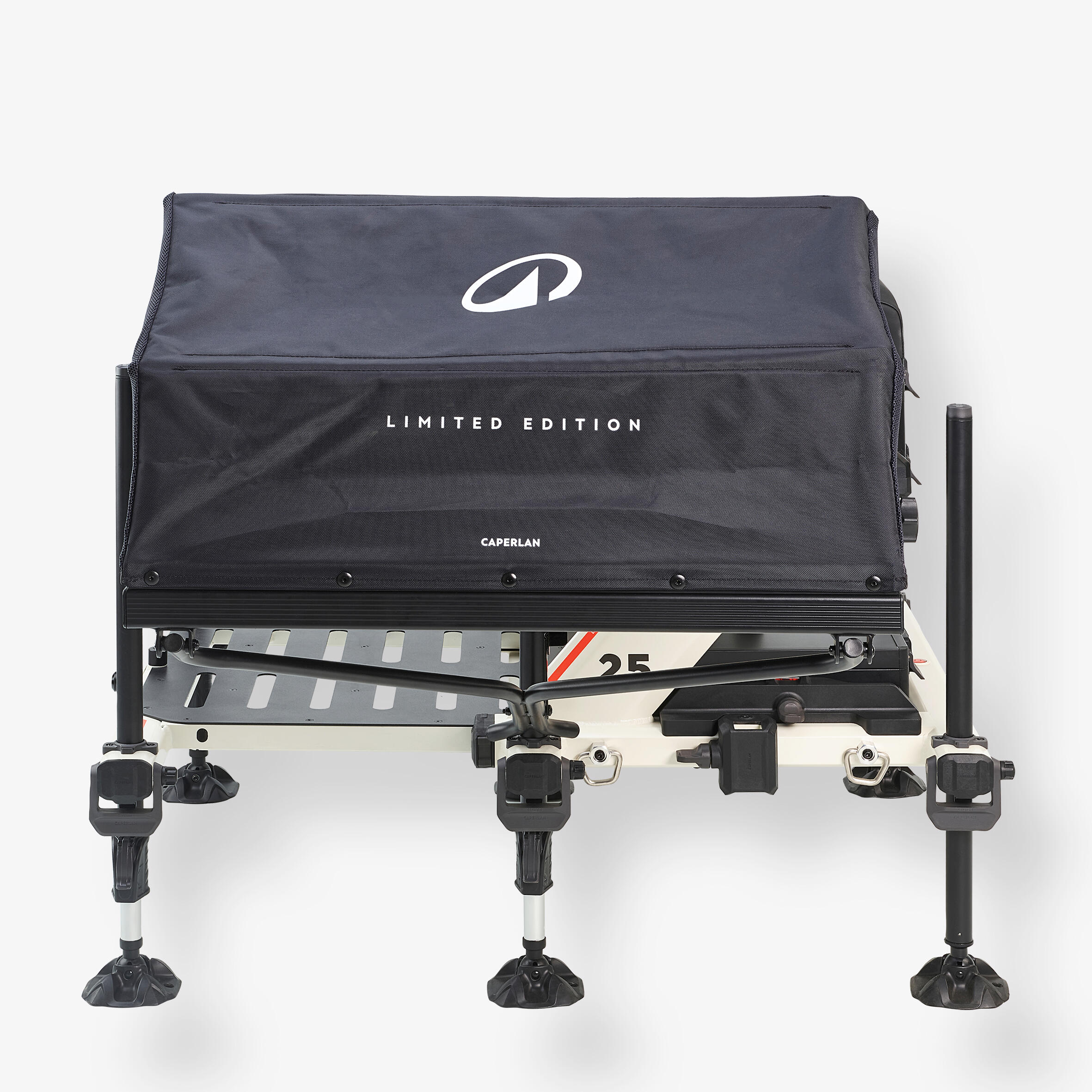

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 4/16

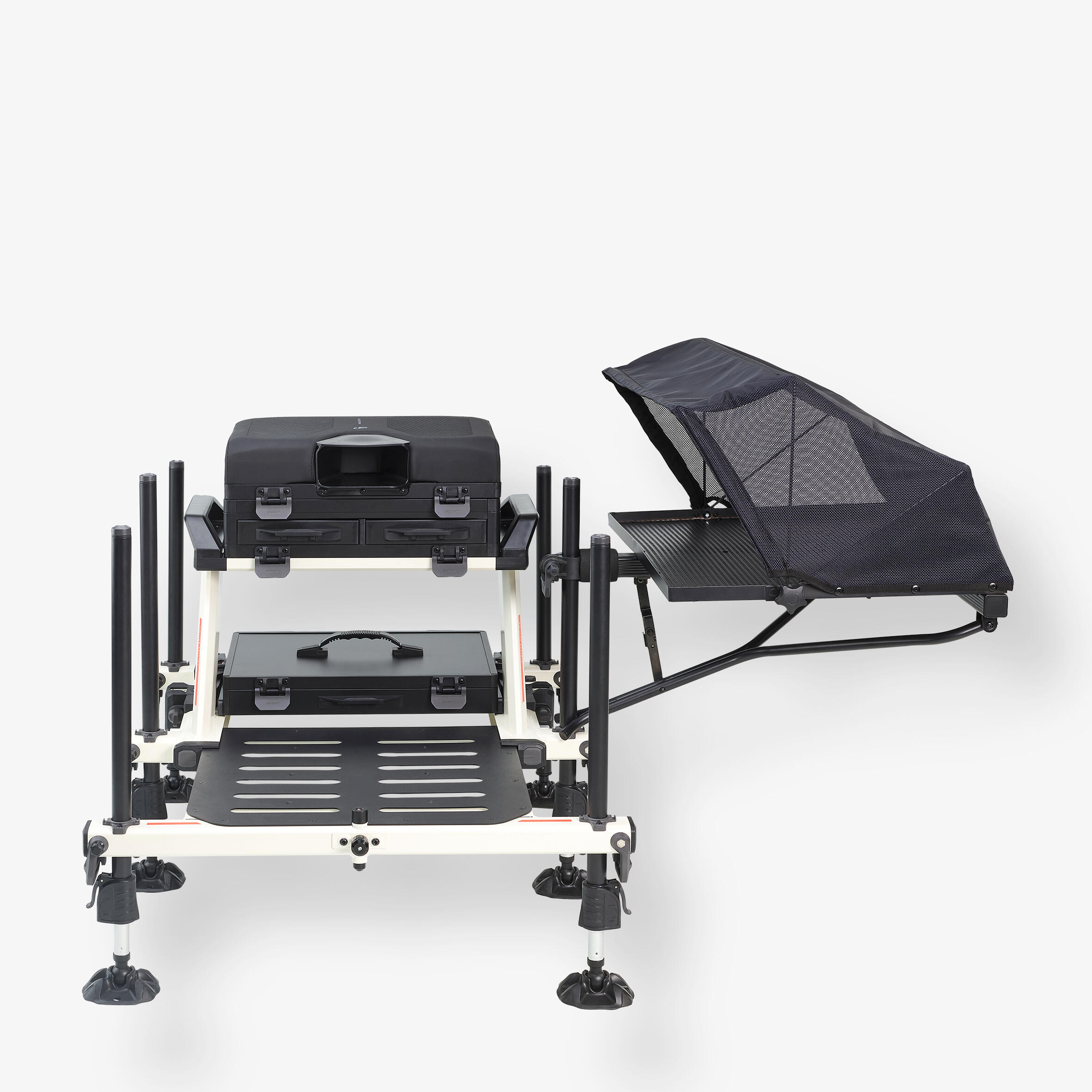

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 5/16

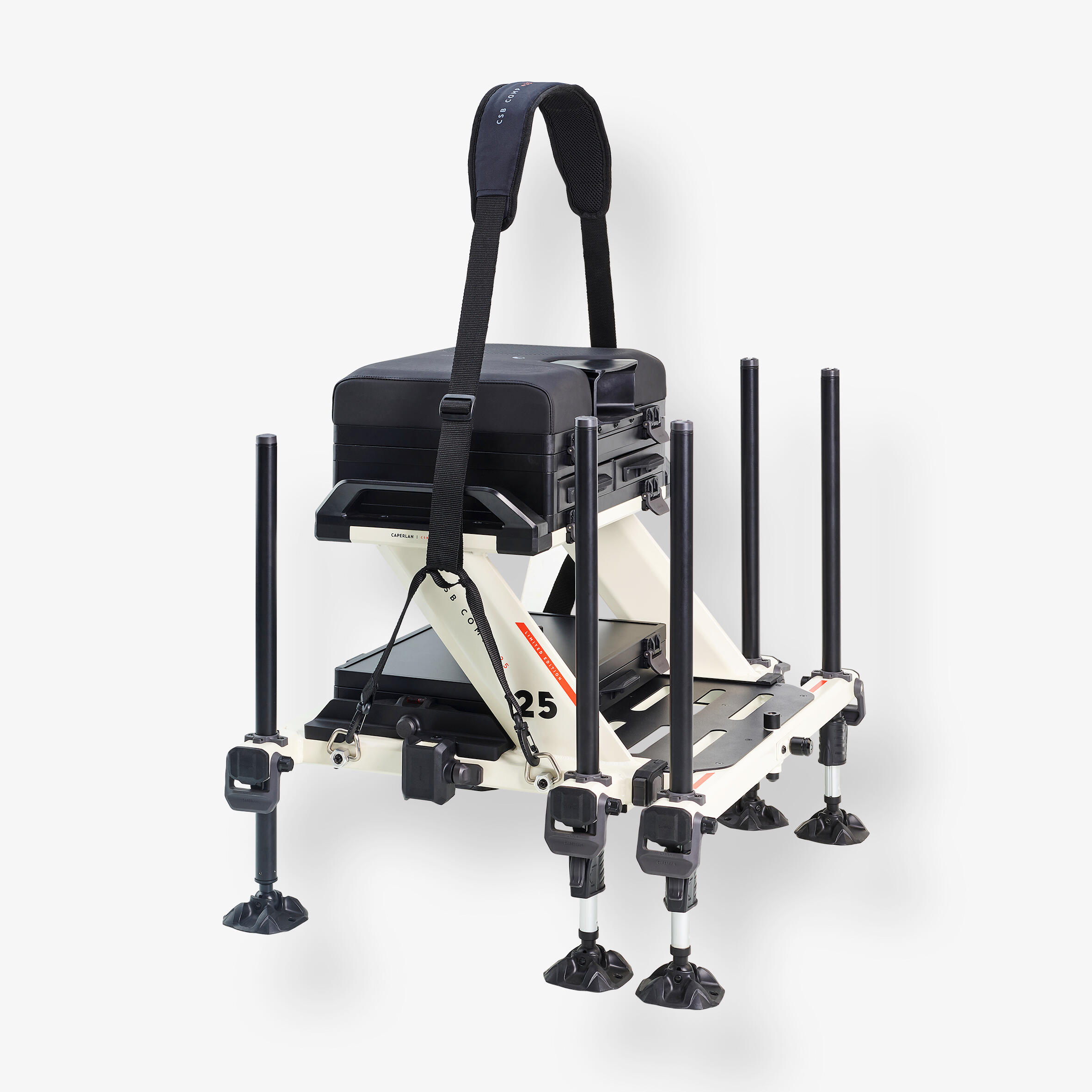

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 6/16

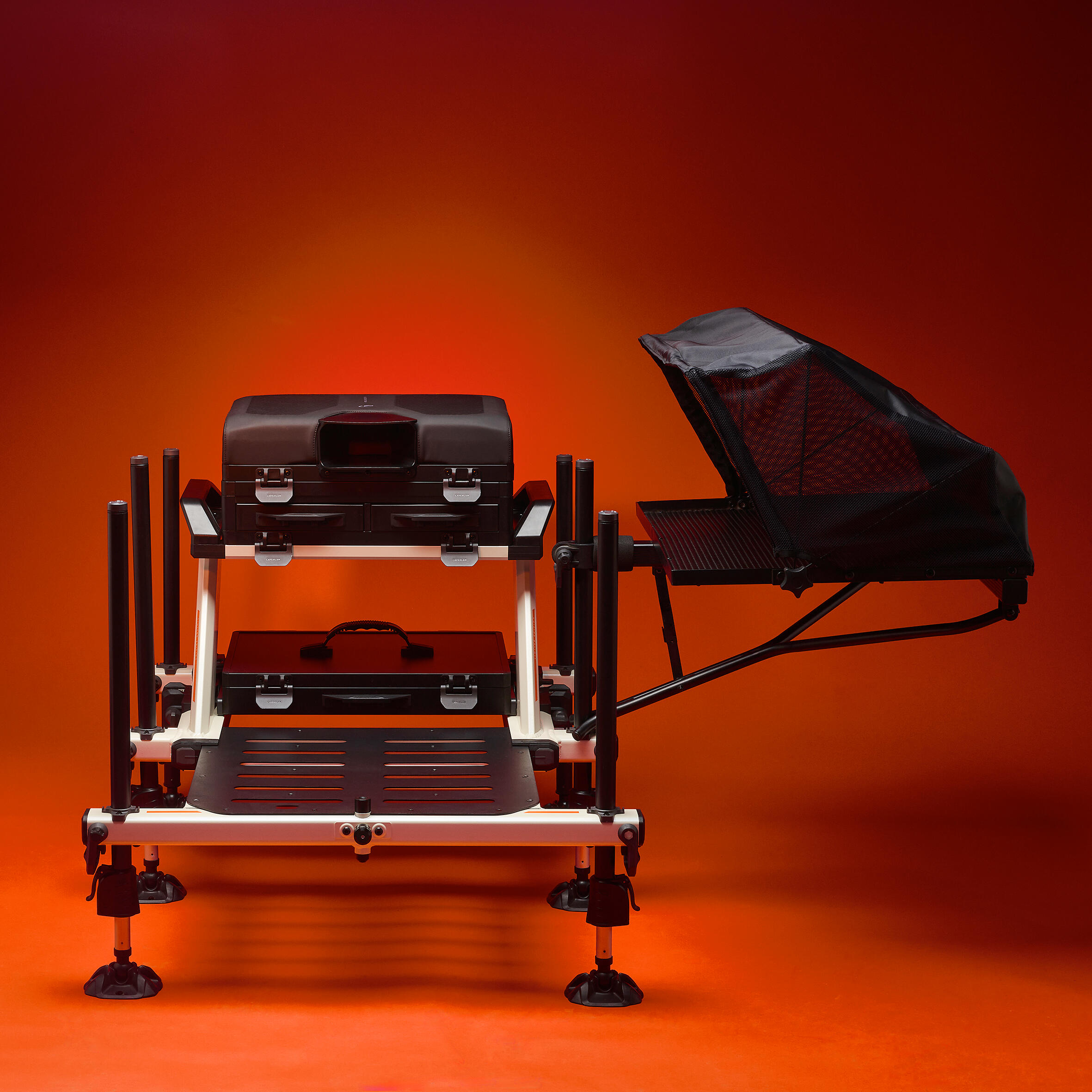

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 7/16

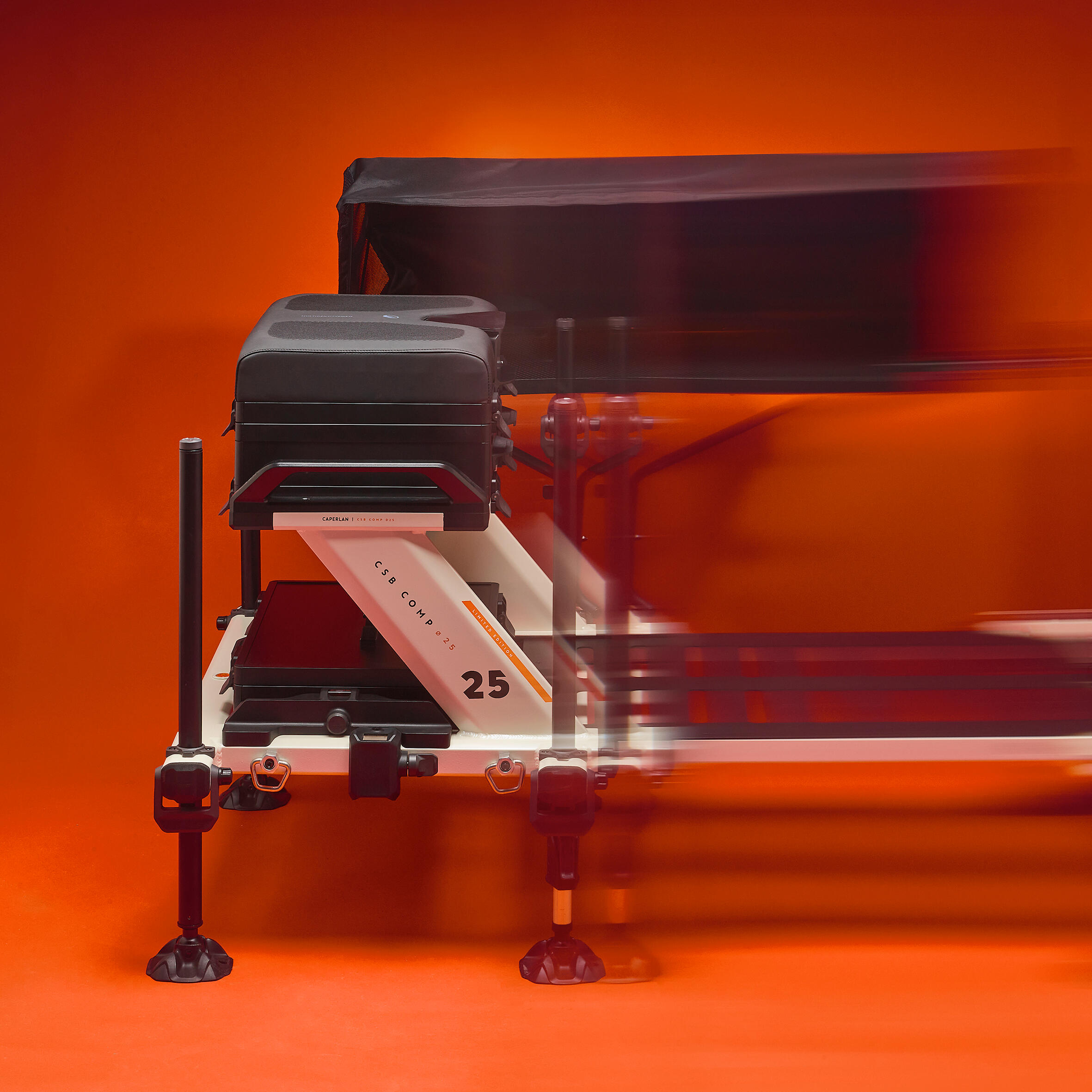

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 8/16

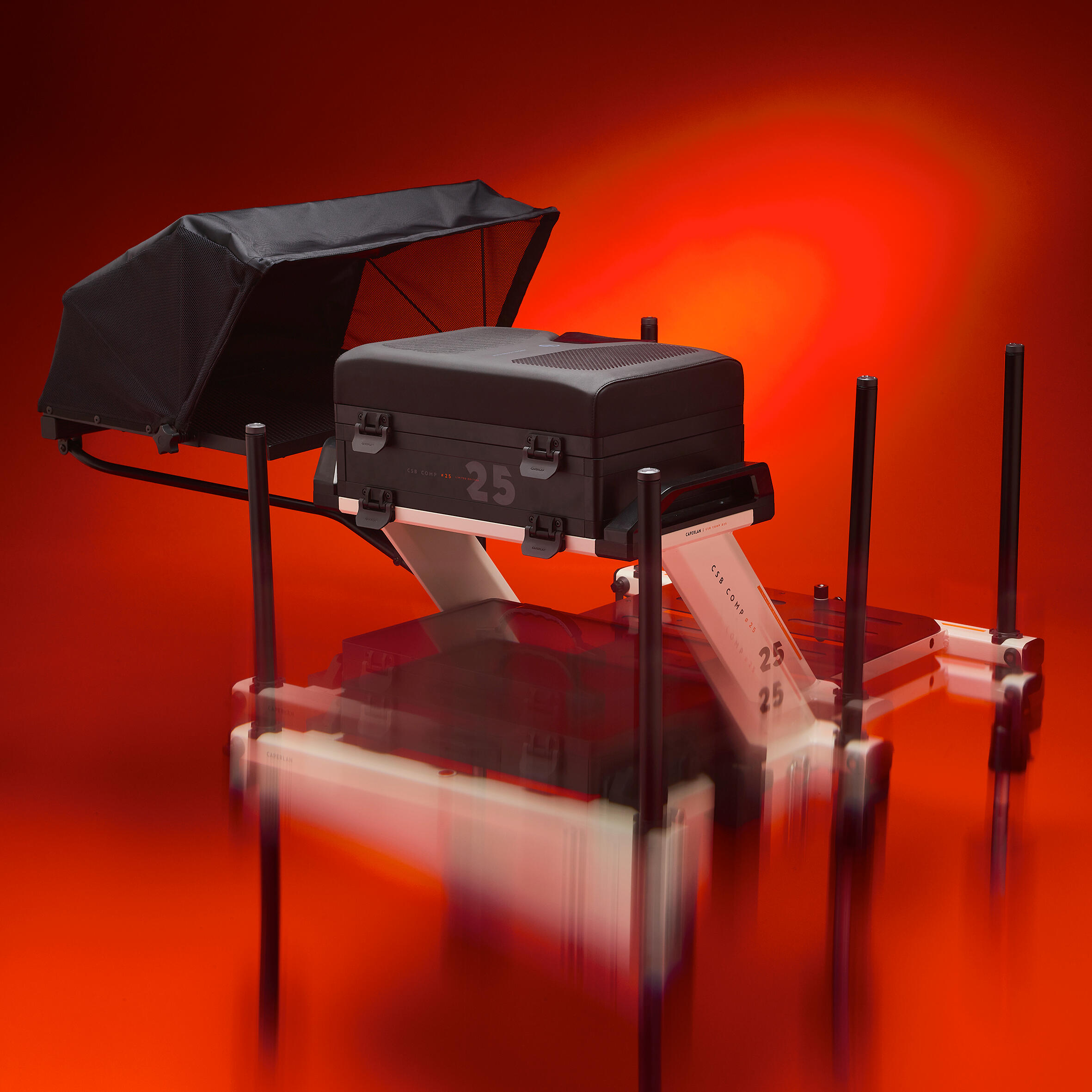

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 9/16

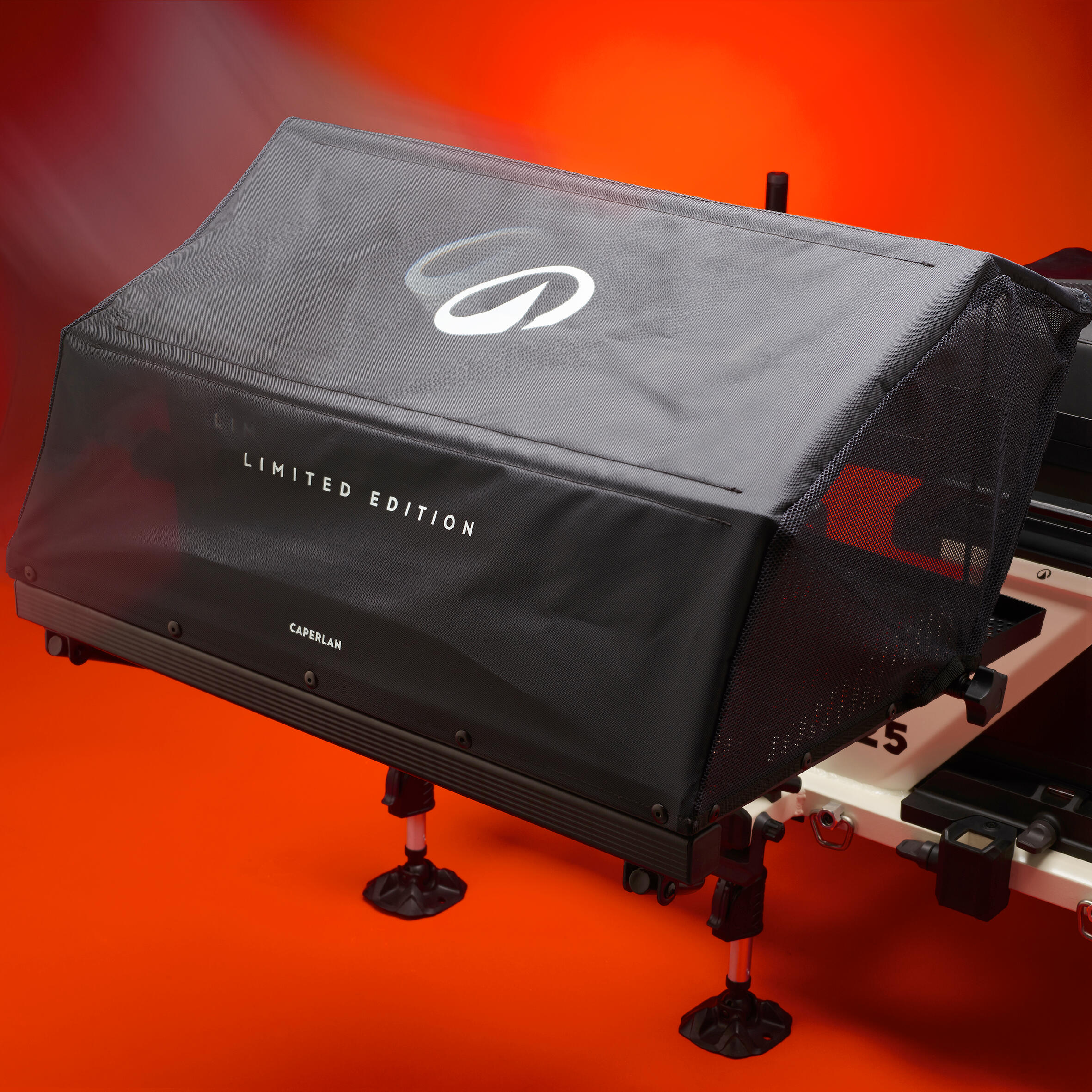

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 10/16

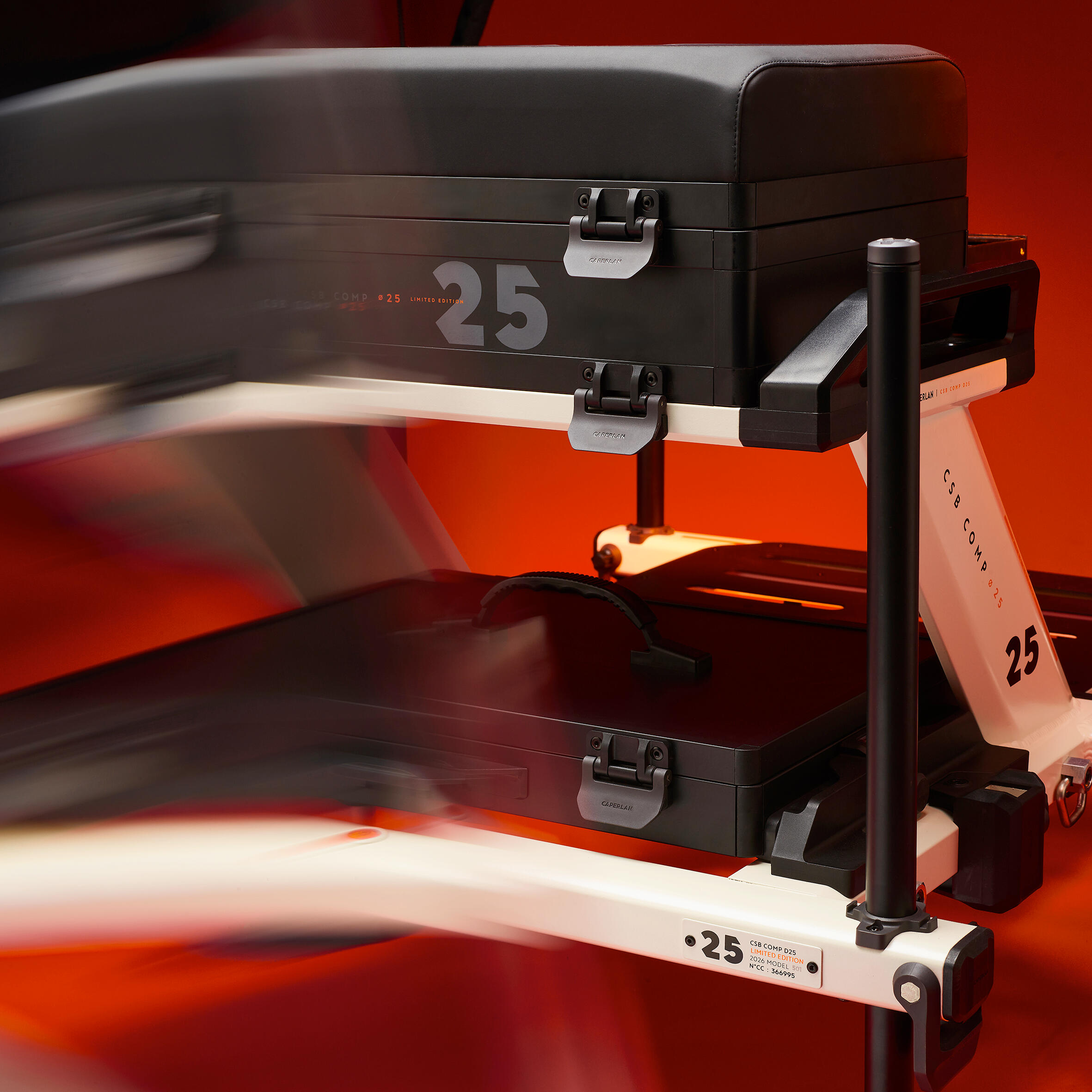

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 11/16

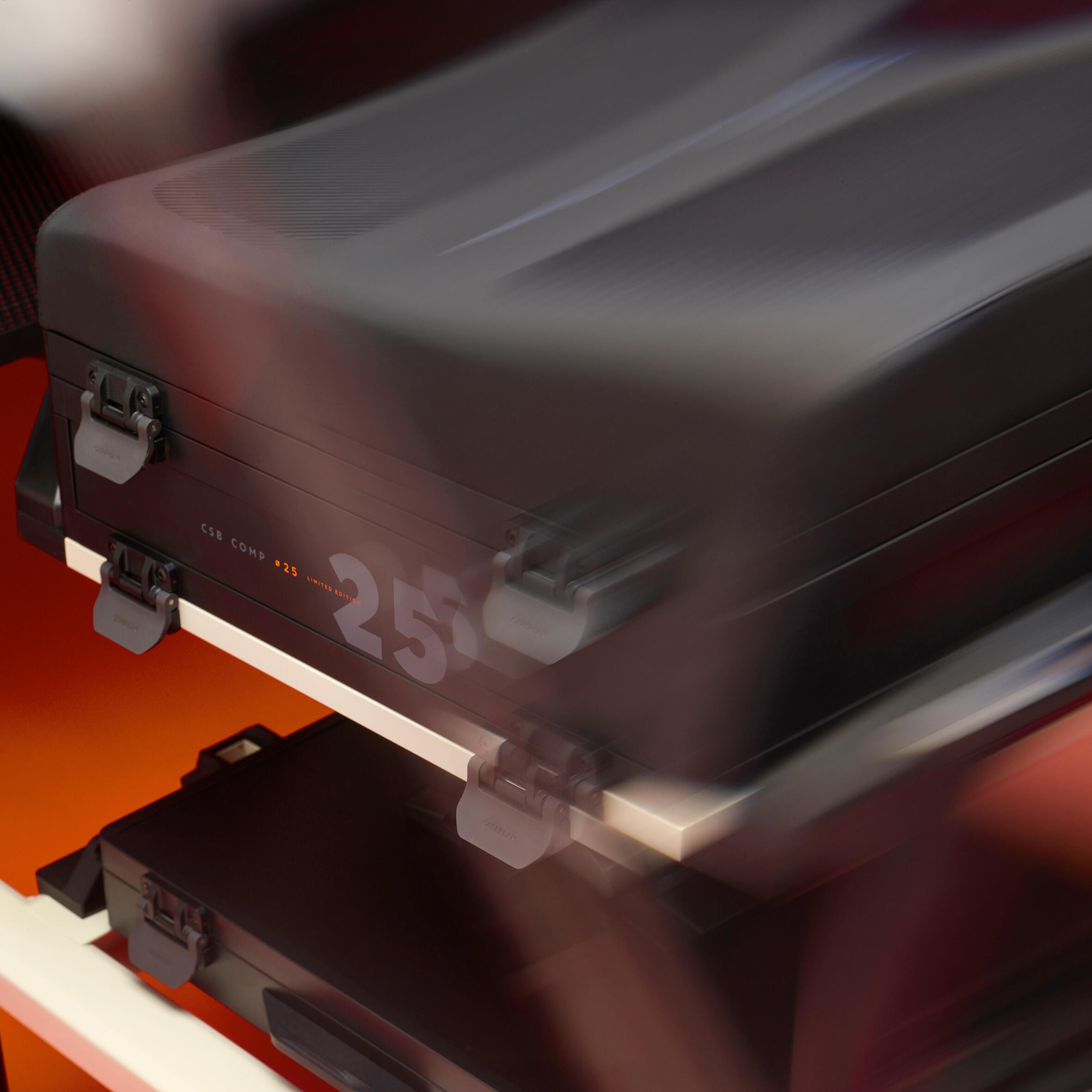

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 12/16

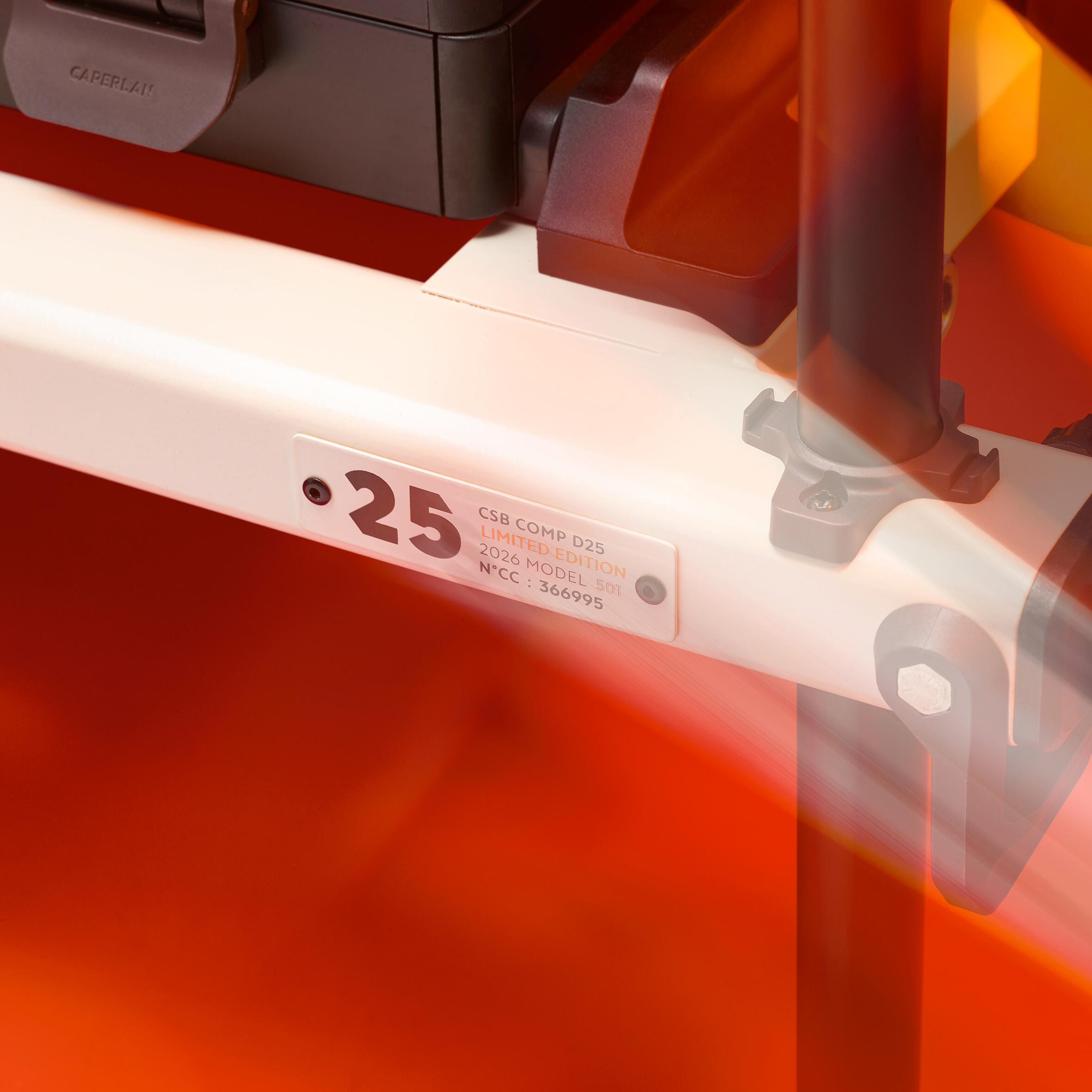

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 13/16

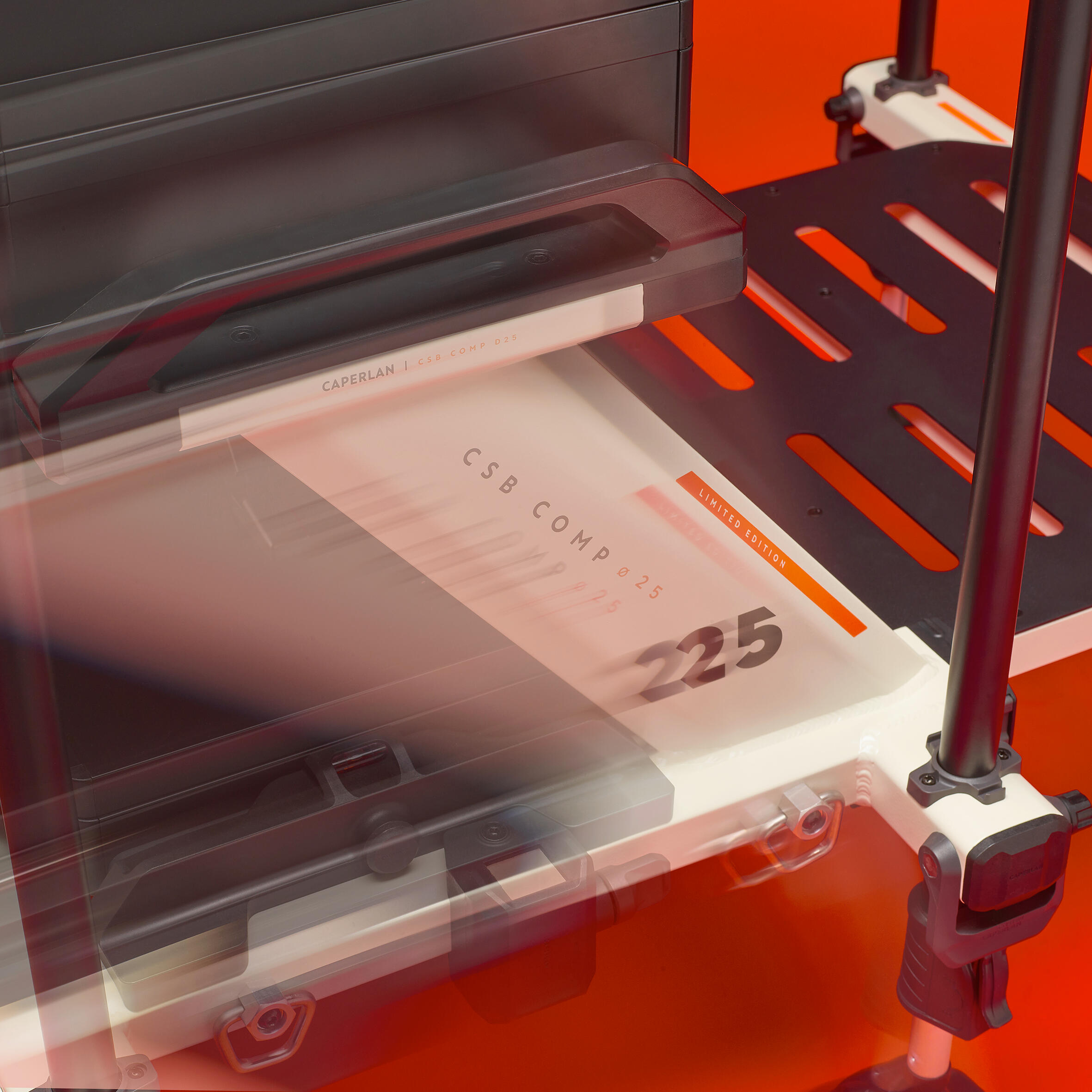

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 14/16

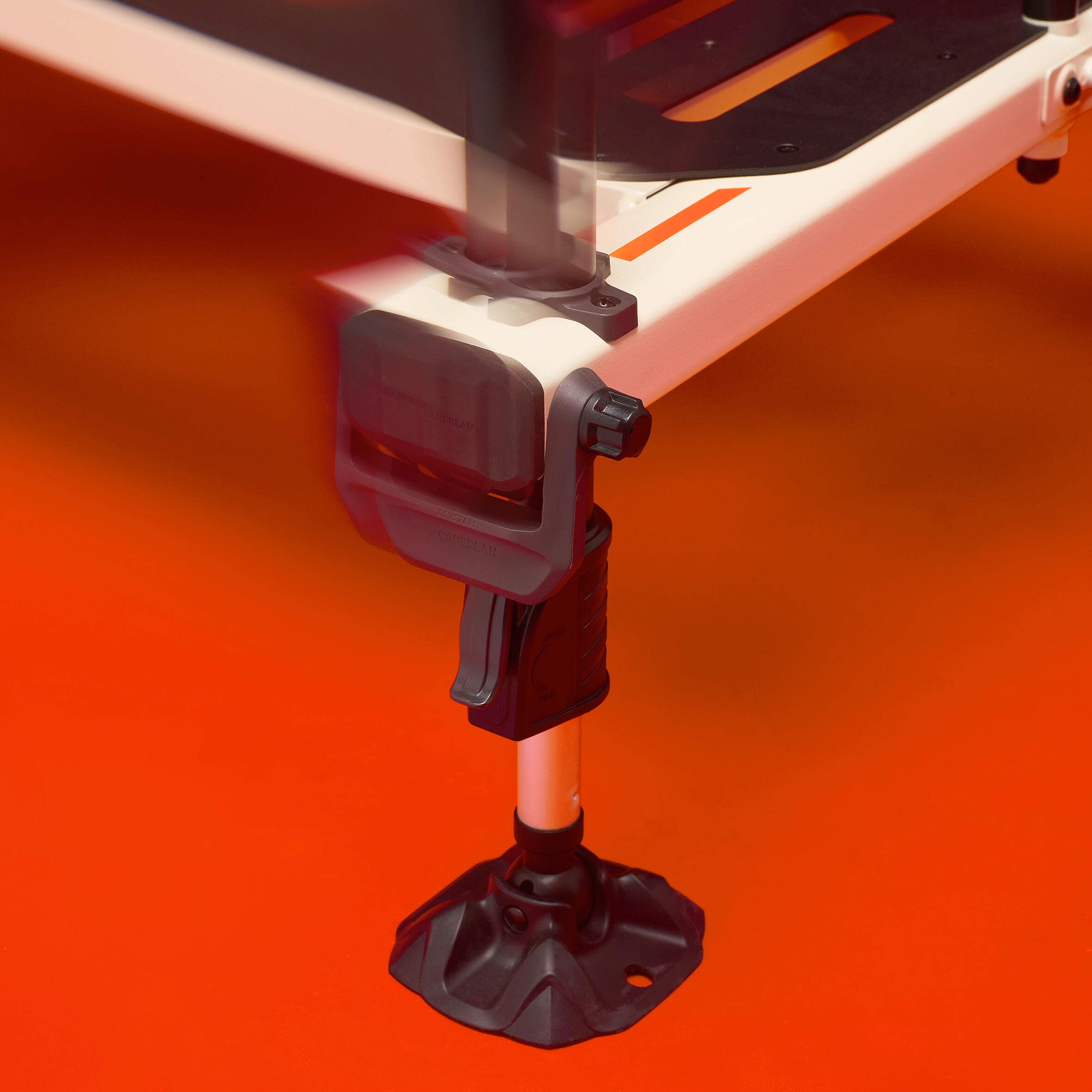

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 15/16

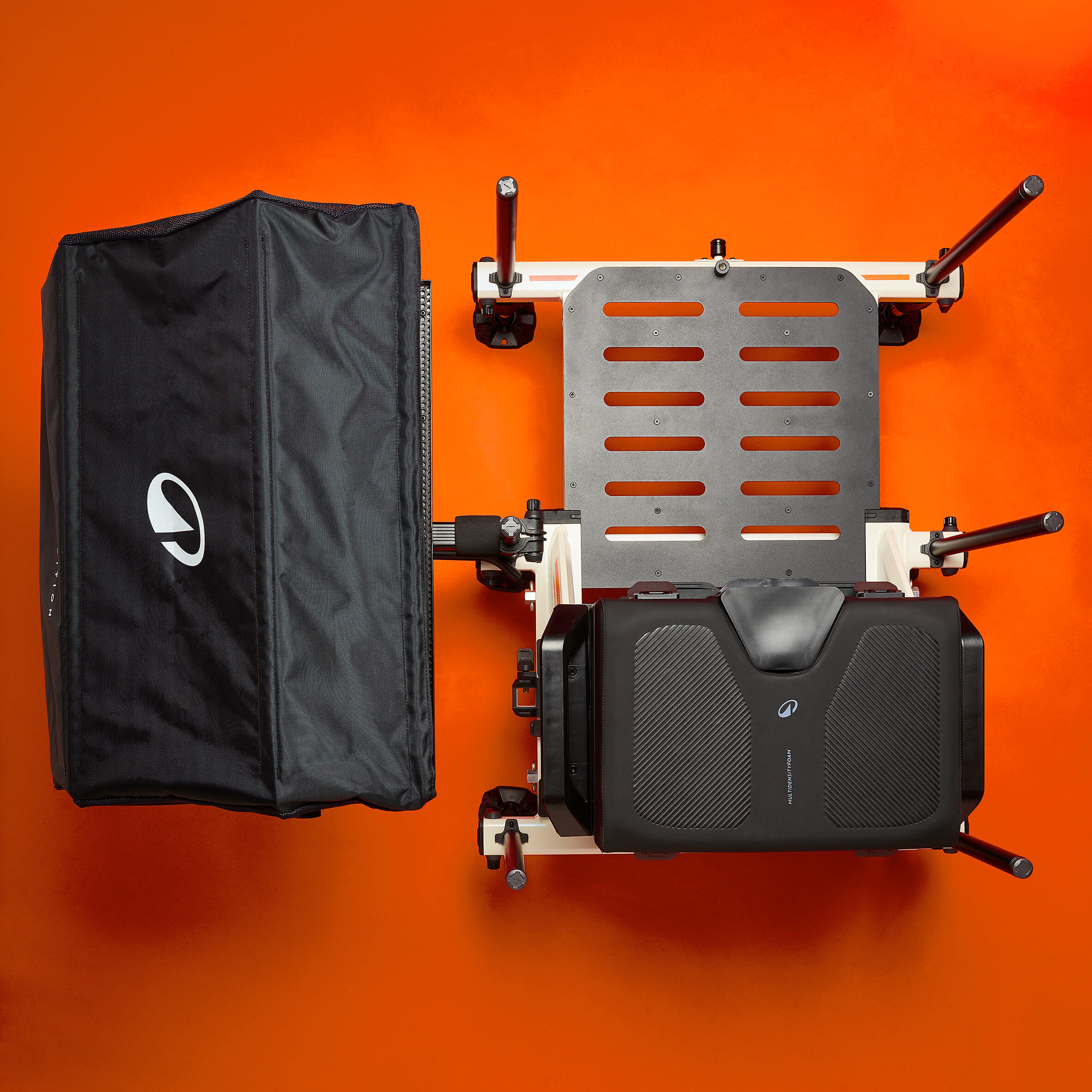

CSB 500 D25 LIMITED EDITION FISHING STATION WITH SIDEBOARD 16/16

ease of use
Station with the Concentric System that does away with all screws on the legs
user comfort
Two foams with different densities for greater comfort
lightweight
Station with 25 mm legs to save weight
easy transport
2 handles on the chassis for easier handling
robustness
Can support up to 110 kg. Complies with the standard EN581_1&2.
compatibility
It is possible to add a side extension to the platform: ref 8929943
repair
Various wear parts can be ordered from our stores or online.

Details

Design details

Technical features (1/2)
- 1 seat with double foam that combines elasticity and comfort (user comfort foam with a density of 79 kg/m3 and comfort foam with a density of 109 kg/m3) - Butt support built into the chair - 2 side handles at the top of the chassis for easy unloading from a car - 1 portable locker and cover in the lower part - 1 locker and 2 drawers in the upper part - New-generation closing mechanisms on the lockers (compatible with the old models) - 1 side tray
Technical features (2/2)
- 2 wheel support inserts on the sides of the station - 1 platform with insert for the front trolley - Steel platform - 1 keepnet support on platform - 3 levels on the 3 sides of the chassis - 4 telescopic legs that can be extended from 57 to 89 cm - 2 fixed 57cm legs - Leg diameter 25 mm (2 with umbrella supports and 4 with built-in screw threads)
Platform
The platform measures 44 cm when open, offering genuine comfort for your legs and feet. Possibility to add 5.5cm side extension that can be installed on the right or the left, between the 2 side legs of the platform, in order to fish on the sides. The platform has a pressure latch that locks it in the closed or open position. The front insert is used for the keepnet support and the front trolley support.
Ergonomic optimisation
Following the study by Tom B. in 2020, we worked on a seat height for optimal ergonomics for the average height of the male population in Europe. The height of the optimised seat is 42cm (height of the platform/top of the cushion). We chose a height of 44cm on the station, because we considered that, for an average weight, the seat will sink by about 2cm to reach the target of 42cm for fishing
Legs
The station features 25-mm diameter feet, offering an excellent compromise between lightness and strength. It has 4 telescopic legs, measuring 57 to 89 cm, with a universal screw thread for attaching your accessories, and 2 fixed legs, measuring 57 cm, one of which has an umbrella holder. This leg diameter reduces the weight, while maintaining a strength tested at 110 kg (standard EN581_1&2). Compatible with all CSB CS accessories that have the D25/D36 connector.
Dimensions/Dismantled length/Weight
DIMENSIONS - Height: 57 cm ( height of the folded legs) - Width: 70 cm - Platform depth: 44 cm - Height between the platform and the seat: 44 cm SIZE - Folded: 60 cm x 70 cm - Unfolded: 88 cm x 70 cm Weight of the station with the 2 drawers: 14.7 5kg Weight of the detachable accessories: - Cover + detachable box: 1.8 kg - Carry strap: 0.15 kg
Spare parts
8759027 SPARE CSB LEG TELESCO D25 57/89 CM 8759026 SPARE CSB LEG TELESCO D25 60/110 CM 8759037 SPARE SEAT WITHOUT BACKREST STATION CSB D25 D36 8759035 SPARE CSB CONCENTRIC SYSTEM D25 8929940 SPARE CSB STATION PLATFORM D25 COMP 8809613 SPARE STATION PLATFORM LOCK 8759907 SPARE CSB BUTT SUPPORT FOR SEATS STATION CSB D25/D36 8759914 SPARE CSB LOCKER COVER 8827631 SPARE CSB ST SLIDING LOCKER FOR STATION CSB 8759039 SPARE SIDE SUPPORT CASING FOR WHEEL STATION CSB
Spare parts bis
8929863 SPARE LEG CAP STATION D25 X 2 8861700 SPARE SIDE HANDLE FOR CSB STATIONS 8809606 SPARE LOCKER LOCK BLOCK CSB LBT FOR STATION 8396643 CSB KEEPNET SUPPORT CSB 8307209 CARRY STRAP STATION CSB 8929943 SPARE CSB PLATFORM SIDE EXTENSION PLE D25
Compatibility
CSB D25 COMP station compatible with all the accessories in the CSB CS range equipped with the D25 D36 adapter.
